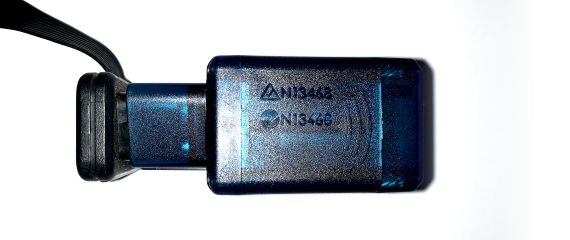

Evolution GPS Tracker
Our IntelliTrac "Evo" is a hardwired professionally installed version of our OBDII plug & go GPS tracking device and is suitable for companies wanting a level of data granularity above our entry level Edge GPS Tracker. This product suits small to medium business wanting economical solutions right through to corporates wanting an entry level covertly and professionally installed GPS Tracking device with second by second granularity of data on demand including driver behaviour analysis .
"IntelliTrac Evo"
We Created An Evolution
At IntelliTrac we have spent years of research & development with hundreds of vehicles out in the field making the best "transitional" GPS Tracking device in the world. Our R&D department was backed by a team of analysts, independent research facilities & major insurance companies to ensure device reliability & the reliability of data produced. We also engaged focus groups to provide feedback on ease of use.
With tens of thousands of the devices now sold, we are confident that we have produced the best product in its class.
IntelliTrac Evo GPS Tracker Specifications & Features
Technical Specifications which set the benchmark in the industry.
| Feature | Availability |
|---|---|
| Part No./SKU | OT10Lite-Evo |
| Dimensions | 50(W) x 28(H) x 42(D) (mm) |
| Weight | 65g |
| GPS Receiver | 66 Channels A-GPS & Glonass |
| Frequency | 2G NZ/ 3G AU & others |
| Power | 8V to 16V |
| Power Consumption Active | <150mA |
| Power Consumption Standby | <40mA |
| Power Consumption Active | <8mA |
| Backup Battery | 230mA LiPo 3.7V |
| Configuration Port | USB |
| Memory | 4MB Flash |
| Accelerometer | Built In Tri-axial |
| Blackbox Recorder | 50,000 Events |
| Blackbox Sampling | 1 Second |
| GSM Outage Store & Forward Buffer | 50,000 Events |
| Operating Temp | -20 to +65 deg C |
| GPS Position Updates | Configurable 1 sec to 65565 sec |
| Realtime Clock Compensate Loss of GPS | |
| GPS Bounce inaccuracy filtering | |
| Sim Pin Setting | |
| Over The Air Configuration | |
| Over The Air Firmware Updates | |
| RoHS Compliant | |
| CE Compliant | |
| FCC Certified | |
| Aus A-Tick & C-Tick | |
| Malaysia Sirim Approval | |
| Indonesia Type Approval | |
| Vehicle Battery Disconnect Warning | |
| Vehicle Battery Connect Notification | |
| Vehicle Battery Low Voltage Warning | |
| Vehicle Battery Voltage Recharged Notification | |
| GPS Tracker Unplugged Warning | |
| GPS Tracker Plugged In Notification | |
| GPS Tracker Battery Low Warning | |
| GPS Tracker Battery Recharged Notification | |
| Smart Power Management Modes | |
| Daily Health Check Reporting | |
| 3 Times Per Day Reporting Regardless Of Use | |
| Advanced Driver Behaviour Analysis | |
| Detect Extreme Braking | |
| Detect Collision | |
| Monitor Speed | |
| Alert Excessive Speed | |
| GPS Odometer | |
| GPS Odometer Accuracy Filtering |
IntelliTrac Evo GPS Tracking Software Features
IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App
| Number of Software Users | Unlimited |
| Software Security | Username & Password |
| Software Privileges | User, Power User, Power User Plus, Superuser, Administrator |
| Allocation of software privileges to each user | |
| Allocation of day time login privilges to each user | |
| Allocation of date time reporting & viewing privileges to each user | |
| After hours privacy mode setting | |
| Manual allocation of drivers to vehicles | |
| Automated app based allocation of drivers to vehicles | |
| Driver data tables including licencing requirements | |
| Driver incident/infringement register | |
| Vehicle make, model, year, reg, vin data register | |
| Custom vehicle data fields | |
| Vehicle Service data and alerts | |
| Fuel Card Usage reporting | |
| Live tracking multi vehicle | |
| Live tracking one vehicle per map window | |
| Single Vehicle Journey Replay | |
| Multi Vehicle Journey Replay | |
| Journey Report | |
| Stop time report | |
| Working hours report | |
| After hours usage report | |
| Excessive Idle Reporting | |
| Activity within geofence report | |
| Alert Wizard | |
| Pop Up alerts on software | |
| Email Alerts | |
| SMS alerts via 3rd party email to sms converter (Additional cost) | |
| Push notifications via 3rd party Pushover app(additional cost) | |
| Alert Configuration Manager | |
| Driver behaviour reporting | |
| Driver behaviour fleet leader board | |
| Excessive RPM Alerts | |
| Fuel Consumption Reports | |
| Custom Report builder | |
| Report Email Scheduler | |
| Online Training Manual | |
| Online Training Video | |
| RPM Monitoring | |
| Customisable Dynamic Trend Analysis Dashboard |
