GPS Trackers For Cars Trucks & Machinery
IntelliTrac "Eclipse" GPS tracking devices are suitable for companies wanting a simple & cost effective hardwired professionally installed solution across their fleet of company cars, light commercial vehicles, trucks & machinery. "Eclipse" provides intermediate GPS tracking features including driver behaviour & internal decision making algorithms to detect excessive idle, overspeeding, harsh braking & acceleration as well as the ability to interface basic switches & sensors in a reliable & robust commercial product.

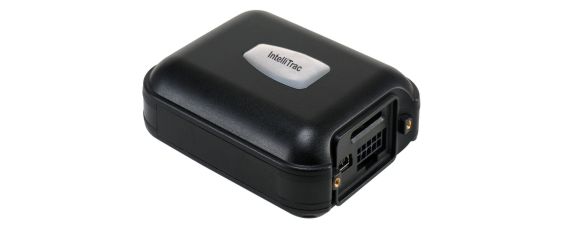

"IntelliTrac Eclipse"
Smart, Robust & Elegant
"Eclipse" is a fully-featured, smart cost-effective GPS tracker developed for company vehicles, trucks, buses & machinery. It offers a fully configurable platform to track in a variety of modes including time, distance and change of direction, along with configurable decision making processes to detect poor driver behaviour, excessive idling & changes in PTO status. Eclipse also has the ability to use its rules processor to take actions such as control other devices based on certain condition statuses of monitored PTOs. The Eclipse is equipped with an 1100mAH LiPo rechargeable backup battery providing many hours of operation when wires are cut or vehicle batteries disconnected.
IntelliTrac Eclipse GPS Tracker Specifications & Features
Technical Specifications which set the benchmark in the industry.
| Feature | IntelliTrac Eclipse |
|---|---|
| Part No./SKU | IT10 |
| Dimensions | 60(W) x 27(H) x 77(D) (mm) |
| Weight | 110g |
| GPS Receiver | 66 Channels A-GPS & Glonass |
| Frequency | 3G 4GLTE All Countries |
| Power | 8V to 35V |
| Power Consumption Active | <150mA |
| Power Consumption Standby | <55mA |
| Power Consumption Sleep | <8mA |
| Backup Battery | 1100mA LiPo 3.7V |
| Configuration Port | USB |
| Accelerometer | Triaxial |
| Blackbox Recorder | 100,000 event |
| Blackbox Recorder Sample Rate | 1 Second |
| GSM Outage Store & Forward Buffer | 100,000 event |
| Operating Temp | -20 to +65 deg C |
| GPS Position Updates | Configurable 30 sec |
| Realtime Clock Compensate Loss of GPS | |
| GPS Bounce inaccuracy filtering | |
| Sim Pin Setting | |
| Over The Air Configuration | |
| Over The Air Firmware Updates | |
| RoHS Compliant | |
| CE Compliant | |
| FCC Certified | |
| Aus A-Tick & C-Tick | |
| Malaysia Sirim Approval | |
| Indonesia Type Approval | |
| Vehicle Battery Disconnect Warning | |
| Vehicle Battery Connect Notification | |
| Vehicle Battery Low Voltage Warning | |
| Vehicle Battery Voltage Recharged Notification | |
| GPS Tracker Unplugged Warning | |
| GPS Tracker Plugged In Notification | |
| GPS Tracker Battery Low Warning | |
| GPS Tracker Battery Recharged Notification | |
| Smart Power Management Modes | |
| Daily Health Check Reporting | |
| 3 Times Per Day Reporting Regardless Of Use | |
| Advanced Driver Behaviour Analysis | |
| Detect Extreme Braking | |
| Detect Collision | |
| Monitor Speed | |
| Alert Excessive Speed | |
| GPS Odometer | |
| GPS Odometer Accuracy Filtering | |
| Customised Event Configuration | |
| Input Ports | 2 positive & 2 Negative Triggered |
| Ability to connect SOS buttons & other switched sensors | 1 positive & 2 Negative Triggered Switches |
| Ability to connect analog sensors such as fuel level sensors | |
| Output Ports | 4 Negative Triggered |
IntelliTrac Eclipse GPS Tracking Software Features
IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App
| Number of Software Users | Unlimited |
| Software Security | Username & Password |
| Software Privileges | User, Power User, Power User Plus, Superuser, Administrator |
| Allocation of software privileges to each user | |
| Allocation of day time login privilges to each user | |
| Allocation of date time reporting & viewing privileges to each user | |
| After hours privacy mode setting | |
| Manual allocation of drivers to vehicles | |
| Automated app based allocation of drivers to vehicles | |
| Driver data tables including licencing requirements | |
| Driver incident/infringement register | |
| Vehicle make, model, year, reg, vin data register | |
| Custom vehicle data fields | |
| Vehicle Service data and alerts | |
| Fuel Card Usage reporting | |
| Live tracking multi vehicle | |
| Live tracking one vehicle per map window | |
| Single Vehicle Journey Replay | |
| Multi Vehicle Journey Replay | |
| Journey Report | |
| Stop time report | |
| Working hours report | |
| After hours usage report | |
| Activity within geofence report | |
| Excessive Idle Reporting | |
| Alert Wizard | |
| Pop Up alerts on software | |
| Email Alerts | |
| SMS alerts via 3rd party email to sms converter (Additional cost) | |
| Push notifications via 3rd party Pushover app(additional cost) | |
| Alert Configuration Manager | |
| Driver behaviour reporting | |
| Driver behaviour fleet leader board | |
| Excessive RPM Alerts | |
| Fuel Consumption Reports | |
| Custom Report builder | |
| Report Email Scheduler | |
| Online Training Manual | |
| Online Training Video | |
| RPM Monitoring | |
| Customisable Dynamic Trend Analysis Dashboard |
