Iridium Satellite GPS Trackers
Our IntelliTrac "Extend" is a commercial grade GPS Tracking device which plugs into the IntelliTrac Elite IT300 Hi End GPS tracker to extend real time GPS Tracking live coverage in remote areas outside the GSM mobile phone networks.

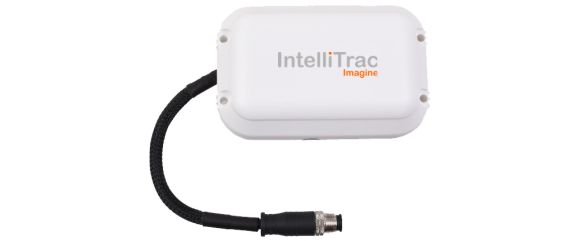

IntelliTrac "Extend"
Integrated GPS Satellite Comms
With all electronics and antennas encapsulated within one discrete module, the IntelliTrac Extend simply plugs into the IntelliTrac Elite IT300 GPS Tracking device to extend real time GPS tracking in areas of poor or no GSM coverage.
The device is available as a permanently mounted module and antenna or as a magnetic mount portable plug and go device.
The integration with the IntelliTrac Elite allows customisation of device behaviour and information transmitted over Iridium satellite to provide effective & economical least cost routing to Sat Coms as required.
Alongside our "Extend" flagship model are other GPS Satellite Comms based trackers to ensure coverage in rural areas or out as sea where GSM does not function.
-

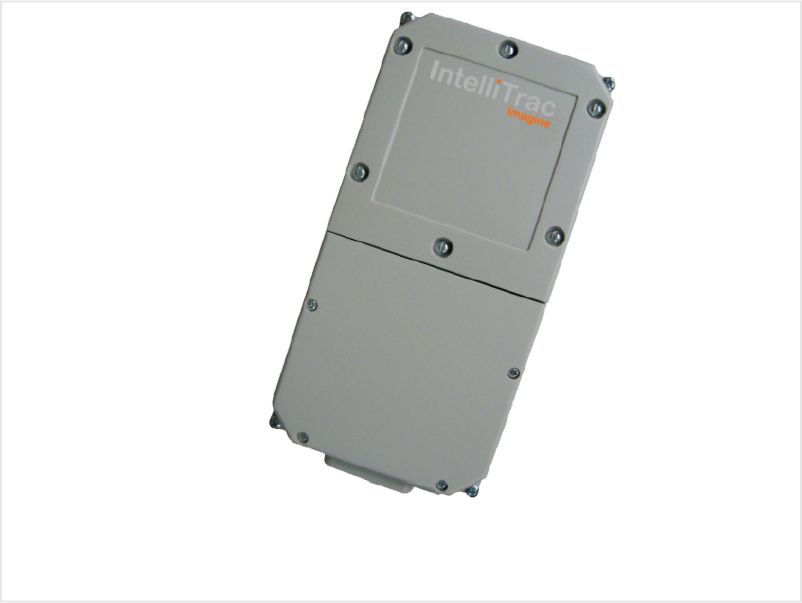

SmartOne B Satellite TrackerStandalone Satellite Tracker Wired or Self Powered 3yr battery life. Suits Containers & Trailers. 2 input triggers.
-

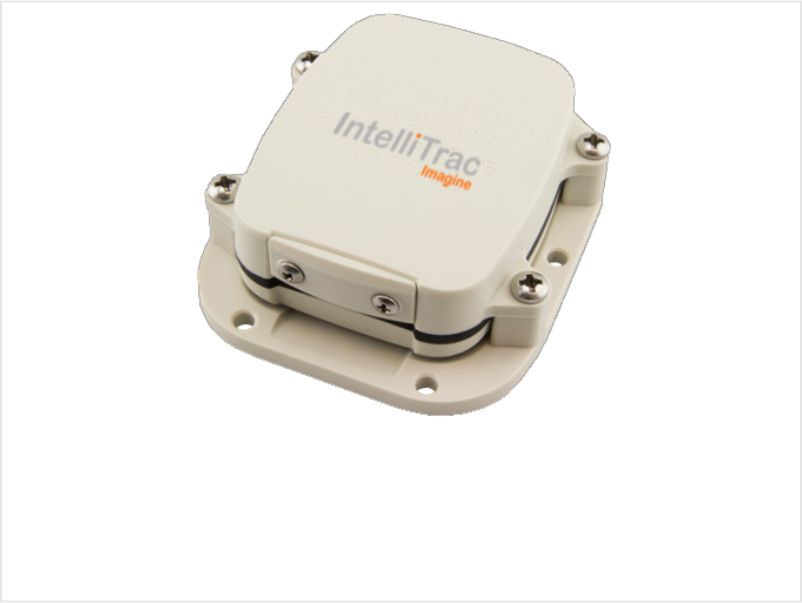

SmartOne C Satellite TrackerStandalone Satellite Tracker Wired or Self Powered 1yr battery life. Suits Containers & Trailers. 2 input triggers.
-

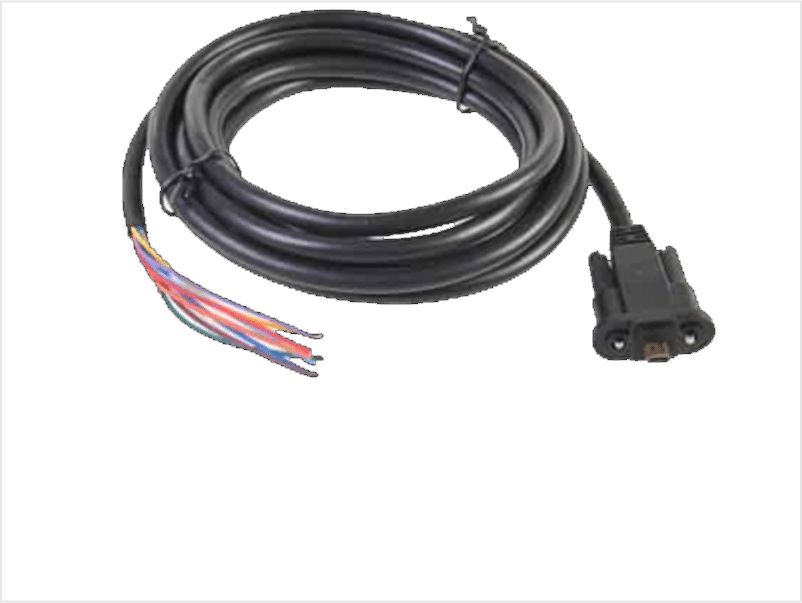

Power Port CableOperates at 5V through to 28V with aditional converters providing power to global start devices & input triggers
IntelliTrac Satellite GPS Tracker Specifications & Features
Technical Specifications which set the benchmark in the industry.
| Feature | Extend | SmartOneB | SmartOneC |
|---|---|---|---|
| Part No./SKU | IR-Extend | GSS1B | GCC1C |
| Description | Addon Satcoms Module to IntelliTrac IT300 Elite | Standalone Satcoms tracker self powered trailer container or hardwired | Standalone Satcoms tracker self powered trailer container or hardwired |
| Dimensions | 80(W) x 30(H) x 130(D) (mm) | 82(W) x 25(H) x 165(L) (mm) | 68(W) x 25(H) x 83(L) (mm) |
| Weight | 300g | 385g | 65g |
| Satellite Comms Network | Iridium 2 way communications send & receive data | GlobalStar 1 way send only communications | GlobalStar 1 way send only communications |
| Line Power | 9V to 32V | Up to 48V | 5V USB cable or 8-22V with regulator cable |
| Backup Battery Type | N/A | 4 x AA 1.5V Lithium | 4 x AAA 1.5V Lithium |
| Battery Life | N/A | Up to 3 years with one position per day | Up to 1.5 years with one position per day |
| Power Consumption Active | 1.6W Peak Short Burst Transmission | N/A | N/A |
| Current Consumption Standby | <200uA | N/A | N/A |
| Operating Temp | -40 to +85 deg C | -40 to +85 deg C | -40 to +85 deg C |
| External Sensors | Connected Via IntelliTrac IT300 Elite | 2 | 1 |
| GPS Position Updates | Configurable Via IntelliTrac IT300 Elite | 1. Up to 12 programmable sleep time of wake settings 2. Send position on alarm or motion sensing 3. Send positions regularly upon movement or alarm 4. Position on Start & Stop based on vibration sensor 5. Position updates based on distance from original position 6. Position updates based on entry/exit geofences |
1. Up to 12 programmable sleep time of wake settings 2. Send position on alarm or motion sensing 3. Send positions regularly upon movement or alarm 4. Position on Start & Stop based on vibration sensor 5. Position updates based on distance from original position 6. Position updates based on entry/exit geofences |
| Realtime Clock Compensate Loss of GPS | Via IntelliTrac IT300 Elite | ||
| GPS Bounce inaccuracy filtering | |||
| Over The Air Configuration | Via IntelliTrac IT300 Elite | ||
| Over The Air Firmware Updates | Via IntelliTrac IT300 Elite | ||
| RoHS Compliant | |||
| CE Compliant | |||
| FCC Certified | |||
| Aus A-Tick & C-Tick | |||
| Malaysia Sirim Approval | |||
| Indonesia Type Approval | |||
| Vehicle Battery Disconnect Warning | |||
| Vehicle Battery Connect Notification | |||
| Vehicle Battery Low Voltage Warning | |||
| Vehicle Battery Voltage Recharged Notification | |||
| GPS Tracker Unplugged Warning | |||
| GPS Tracker Plugged In Notification | |||
| GPS Tracker Battery Low Warning | |||
| GPS Tracker Battery Recharged Notification | N/a requires battery replacement | N/a requires battery replacement | |
| Smart Power Management Modes | Via IntelliTrac IT300 Elite | ||
| Daily Health Check Reporting | Via IntelliTrac IT300 Elite | ||
| 3 Times Per Day Reporting Regardless Of Use | Via IntelliTrac IT300 Elite | ||
| Advanced Driver Behaviour Analysis | Via IntelliTrac IT300 Elite | ||
| Detect Extreme Braking | Via IntelliTrac IT300 Elite | ||
| Detect Collision | Via IntelliTrac IT300 Elite | ||
| Monitor Speed | Via IntelliTrac IT300 Elite | ||
| Alert Excessive Speed | Via IntelliTrac IT300 Elite | ||
| GPS Odometer | Via IntelliTrac IT300 Elite | ||
| GPS Odometer Accuracy Filtering | Via IntelliTrac IT300 Elite | ||
| OBDII Odometer | Via IntelliTrac IT300 Elite | ||
| OBDII Speed | Via IntelliTrac IT300 Elite | ||
| Vehicle Towed Detection | Via IntelliTrac IT300 Elite | ||
| Fuel Consumption Monitoring | Via IntelliTrac IT300 Elite | ||
| RPM Monitoring | Via IntelliTrac IT300 Elite | ||
| Excessive RPM Alerts | Via IntelliTrac IT300 Elite | ||
| Engine Coolant Temperature Monitoring | Via IntelliTrac IT300 Elite | ||
| Engine Trouble Code Alert | Via IntelliTrac IT300 Elite | ||
| Query Engine Trouble Codes Remotely | Via IntelliTrac IT300 Elite |
