GPS Tracking For Utilities Electricty, Water, Gas
IntelliTrac "Elite" Flagship GPS Telematics For Utilities
IntelliTrac "Elite" sets the benchmark in GPS Telematics Devices for the Utilities industry providing high end scalable features and a uniform telematics hardware solution across all fleet & plant.
At IntelliTrac we have a suite of turn key solutions for utilities, plus a range of easily customisable modules to ensure all requirements and integrations are achieved.
Talk to our friendly team of experts about your organisation's requirements
"IntelliTrac Elite"
Setting the benchmark
IntelliTrac Elite is the 4th generation flagship utilities industry telematics device by IntelliTrac. It features cutting edge technology & functionality such as:
- Live GPS Tracking with optional fallback to SatComs
- Driver Identification - RFID card or keyring
- Driver behaviour analysis
- In cabin driver coaching
- In Cabin SOS button & Portable SOS/Man Down Pendant
- Optional Engine Management Monitoring
- Rollover detection
- Seat Belt Monitoring
- 4WD engaged monitoring
- Pre-start check lists
- Incident & Infringement Registers
- Driver's Licence Validity, Endorsement & Retrictions Register
Vehicle Activity Exception Reporting
IntelliTrac has developed flexible reporting to comply with most Utilities requirements in Asia Pacific. The reporting includes flexible tolerances when reporting on the following events:
- Excessive Idle
- Extended Idle
- Excessive High Speed
- Overspeeding within geofence
- Speeding against posted speed limit
- Seatbelt not worn when vehicle speed exceeding "x" for time period "y"
- 4WD not engaged on unsealed roads when traveling more than "x"kph for more than "y" seconds
- Battery disconnected, Battery Low & Backup Battery Low
- SOS Button
- Rollover or impact detected
- Fatigue Management Duty Cycle reached
"From the top down directors & managers all share responsibility in providing a safe workplace for all staff "
IntelliTrac's Utilities industry Driver Behaviour Management Solutions combine a number of modules ensuring compliance is met by your organisation. They include:
- Driver Identification. Know who is driving each vehicle at any time
- Driver behaviour analysis
- Driver behaviour coaching
- Driver fatigue reporting
- Driver fatigue rest break reminders

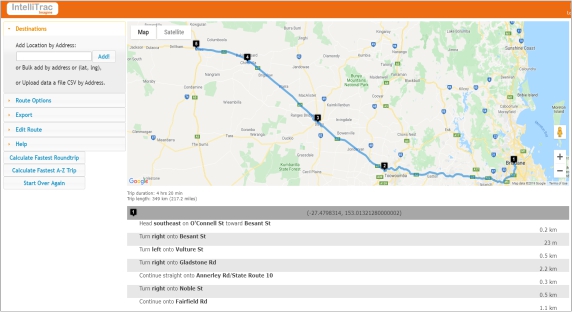

"Planning The Journey
Planning the journey allows staff and managers to clearly safe routes, define travel times and scheduled rest breaks keeping in line with Work Health and Safety and Chain of Responsibility Guidelines:
- Define start location
- Define end location
- Calculate travel times and distances
- Calculate suitable rest areas
SOS & Man Down Buttons & Pendants
IntelliTrac provides a number of SOS, Duress and Man Down options as follows:
- In vehicle mounted SOS button interfaced to the IntelliTrac Elite or Eclipse range of GPS Trackers
- Short range 4 button SOS button interfaced to the IntelliTrac Elite GPS Tracker
- Long Range SOS 1,2,3 or 4 button UHF remote control interfaced to the IntelliTrac Elite or Eclipse range of GPS Trackers
- Standalone IntelliTrac Escort personal GPS tracker with SOS button and Man Down Function
- Integration to 3rd party products such as SPOT personal tracker
Accurate Service Records
Accurate Service Records are made easy with IntelliTrac's Fleet Service Manager Module.
- Record issues reported by drivers during pre-start checks
- Record issues reported by Telematics Engine Management Interface
- Record vehicle repair & service dates
- Record Vehicle Service/Inspection activity, works done, parts used
- Maintenance, Repair & Downtime Statistics
- Maintenance & Service Costs Register
IntelliTrac
Fuel Level Monitoring
Our range of fuel tank level sensors as well as existing vehicle, plant & equipment fuel level sensors may be integrated into the IntelliTrac Elite range of products to monitor fuel tank levels.
IntelliTrac's advanced software is able to monitor & alert on fuel tank levels and calculate approximate fuel usage per hour or per km travelled as well as monitor for detections in rapid fuel level drops indicating fuel theft.
More InformationIntelliTrac Elite is the 4th generation utilities telematics device by IntelliTrac. It features cutting edge technology & functionality such as:
- Live GPS Tracking with optional fallback to SatComs
- Driver Identification - No Swipe No Start
- In Cabin SOS button & Portable SOS/Man Down Pendant
- Trailer hitch & Unhitch Detection
- Trailer Identification
- Trailer To Prime Mover Location Tracking Synchronisation
- Door Open Detection
- Cargo Temperature Monitoring
- Fuel theft
- Off Route Alerts
- Usage outside of operational times & areas
- Rollover detection
- Interface to 3rd party security systems
- Interface to Video Recorders CCTV with Live Streaming
"IntelliTrac Elite"

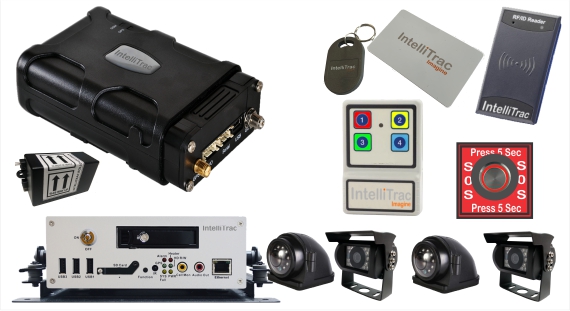

Driver & Cargo Security

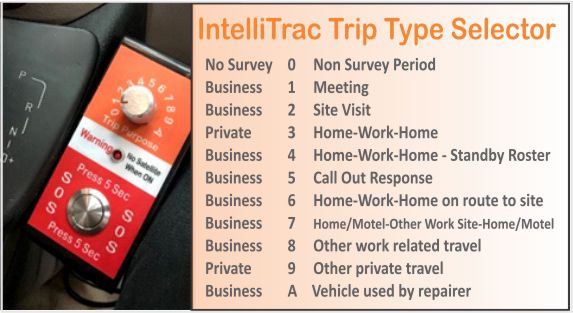

FBT eLogbook Telematics Console
FBT Electronic logbooks are made easy with IntelliTrac's FBT Electronic Logbook module. This module is suited to organisations where employees are not provided company mobile phones or tablets. Employees simply present their ID Cards to the embedded Driver RFID Reader & select their trip purpose using a rotary dial
This method is ATO (Australian Taxation Office) approved with a class ruling, and is used seamlessly by many organisations.
Drivers have the ability to log into the IntelliTrac Hawk Web or Smartphone app to edit trip type and purpose at any time.
IntelliTrac GPS Telematics devices seamlessly integrate to automate recording driver details, origin, destination, odometer readings and days available for private use when generating Electronic FBT logbooks
More InformationFBT App Integrated with GPS
IntelliTrac FBT elogbook apps make day to day recording of trips a breeze. The app seamlessly connects to the vehicle employees are driving and automatically reads data from the GPS tracking telematics device to automatically populate driver information, date and time of travel, origin and destination points and odometer readings. At the same time it prompts drivers to enter trip purpose at the start of each trip.
Using the IntelliTrac FBT app is also ATO (Australian Taxation Office) approved with a class ruling.
Drivers have the ability to log into the IntelliTrac Hawk Web or Smartphone app to edit trip type and purpose at any time.
More Information

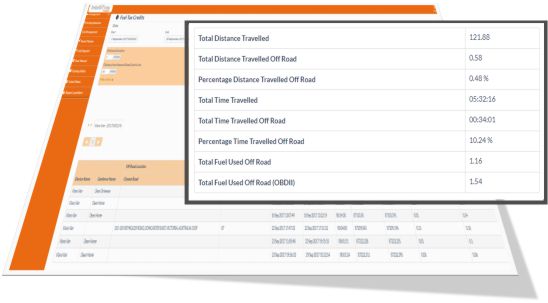

Fuel Tax Credits
Australian Utilities Organisations can claim fuel tax credits of approximately 41.8 cents per litre for liquid fuels used by motor vehicles, plant & equipment when they are not travelling on public roads, plus up to 16 cents per litre for liquid fuels used in heavy vehicles when travelling on public roads.
The IntelliTrac Elite GPS Telematics Device forms the basis of this report due to its high end features and accuracy in reporting GPS and Engine Management data as well as being able to interface into auxilliary engines and PTO's where fuel used in these is eligable for 100% rebate in most cases.
It is also important to note that any fuel used in the maintenance of a public road is also claimable. Therefore being able to report on PTO activations in vehicles such as street sweepers, graders, rollers and flocons is also advantageous.
For more information from the Australian Taxation Office is available here. More Information
Scalable Car Pooling Solutions
Since 2002 IntelliTrac has been a pioneering telematics hardware supplier to the pool car industry, providing solutions to resellers and integraters. Today we offer a complete & customisable solution to corporate & government fleet managers comprising of the following modules:
- Online Booking System
- RFID Card Keyless Entry & Go Technology
- App based Keyless Entry & Go Technology
- Booking Reminders
- Return Reminders & Extensions
- Ride Sharing/multi passenger/multi use
- Multi Zone Pickup & Drop off
- Book by vehicle attribute
- Vehicle Utilisation Balancing
- Automated or Manual Vehicle Allocation
- Automated FBT Logbooks
- Pre-Start Checks
"IntelliTrac Elite"
It lets you decide what you want
Intellitrac "Elite" provides a flexible & Scalable Telematics Hardware platform allowing you to decide the features & functionality required in your organisation. With applications in corporate fleet environments where driver identification, driver behavior, pool car systems, & electronic logbooks are on the wish list, to commercial environments where vehicle PTO's such as garbage truck bin lifts, street sweeper operation, graders, rollers, lawn mowers require monitoring, right through to refrigerated transport temperature monitoring, engine management monitoring, tyre pressure monitoring, mass mannagement & fatigue management, the IntelliTrac Elite is the Telematics Hardware platform of choice.
New Zealand Automated Electronic Road User Charges Under Development. Ask about our current ERUC modules.
-
Driver RFID ReaderDriver RFID readers coupled with cards or keyfobs automatically assign drivers to vehicles for each trip.
-
Engine Management MonitoringOBDII Engine Management modules allow the telematics device to transmit live engine data & fault codes.
-
Mobile Data TerminalOur Android 4G LTE MDT runs a range of apps developed by IntelliTrac inc.Bizzow, CoR, FBT, Waste, TMS, eLogbooks.
-
Refrigerated Temperature MonitoringA range of refrigerated goods transport temperature monitoring sensors for up to 3 compartments
-
Tyre Pressure MonitoringMonitor up to 8 tyres for pressures & temperatures and stream alerts real time into the telematics platform.
-
Video Recording & StreamingTaking dashcams to the next level with 8 camera 30 day recording, live streaming, event capture interface by MDT.
-
FBT ConsoleProviding a simple method of logging business & private trips to satisfy ATO FBT Logbook requirements in Australia.
-
Iridium SatcomsConnected to the IntelliTrac "Elite" provides Satcoms switch over when GSM networks are not available.
-
Mass ManagementIntelliTrac Elite provides interfacing to various brands of vehicle scales, providing live data streaming.
-
Driver BehaviourIn Cabin Driver Behaviour feedback and coaching via audio visual signals
-
Remote SOSProviding a series of short and long range UHF remote sos buttons and pendants
-
Fuel Level SensorsIntelliTrac provides a range of fuel tank level sensors for plant & equipment
IntelliTrac Elite GPS Tracker Specifications & Features
Technical Specifications which set the benchmark in the industry.
| Feature | IntelliTrac Elite |
|---|---|
| Part No./SKU | IT300 |
| Dimensions | (L x W x H): 115: 75: 32 mm |
| Weight | 150g |
| Casing | ABS with Optional IP66 Rating |
| GPS Receiver | 66 Channels A-GPS & Glonass |
| GPS Dead Reckoning | Yes - Underground Parking & Tunnel Positioning |
| Frequency | 3G 4GLTE All Countries |
| Power | 8V to 35V |
| Power Consumption Active | <90mA |
| Power Consumption Standby | <10mA |
| Power Consumption Sleep | <4mA |
| Backup Battery | 1100mA LiPo 3.7V |
| Configuration Port | USB |
| Accelerometer | Yes - Tri- axial |
| GyroScope | Yes - Tri- axial |
| Blackbox Recorder | 100,000 event high, 15,000 event low |
| Blackbox Recorder Sample Rate | Configurable Time and/or Distance and/or change of heading and Ignition on and GPS Fix. Normally set to 1 Second |
| GSM Outage Store & Forward Buffer | 100,000 event high, 15,000 event low |
| Operating Temp | -20 to +80 deg C |
| GPS Position Updates | Configurable Time and/or Distance and/or change of heading and Ignition on and GPS Fix. Normally set to 30 seconds or change of direction 30 degrees. |
| Realtime Clock Compensate Loss of GPS | |
| GPS Bounce inaccuracy filtering | |
| Sim Pin Setting | |
| Over The Air Configuration | |
| Over The Air Firmware Updates | |
| Sim Pin Card Setting | |
| RoHS Compliant | |
| CE Compliant | |
| FCC Certified | |
| Aus A-Tick & C-Tick | |
| Malaysia Sirim Approval | |
| Indonesia Type Approval | |
| Vehicle Battery Disconnect Warning | |
| Vehicle Battery Connect Notification | |
| Vehicle Battery Low Voltage Warning | |
| Vehicle Battery Voltage Recharged Notification | |
| GPS Tracker Unplugged Warning | |
| GPS Tracker Plugged In Notification | |
| GPS Tracker Battery Low Warning | |
| GPS Tracker Battery Recharged Notification | |
| Smart Power Management Modes | |
| Daily Health Check Reporting | |
| 3 Times Per Day Reporting Regardless Of Use | |
| Advanced Driver Behaviour Analysis | |
| Detect Extreme Braking | |
| Detect Collision | |
| Monitor Speed | |
| Alert Excessive Speed | |
| GPS Odometer | |
| GPS Odometer Accuracy Filtering | |
| Customised Event Configuration | |
| Input Ports | 2 positive & 2 Negative Triggered |
| Input Ports Expansion - Additional Module | 4 positive & 16 Negative Triggered including 4 Analog Digital Inputs |
| Ability to connect SOS buttons & other switched sensors | 1 positive & 2 Negative Triggered Switches (without expansion module) |
| Ability to connect analog sensors such as fuel level sensors | |
| Output Ports | 4 Negative Triggered |
| Input Ports Expansion - Additional Module | 20 - 4 Positive Triggered (Analog Digital) & 16 Negative Triggered with Additional Module |
| Output Ports Expansion - Additional Module | 10 Negative Triggered with Additional Module |
| Bluetooth Connectivity for MDT Messaging & Hawk App | 1 requires 1 serial port via additional module |
| Wireless Connectivity for MDT Messaging & Hawk App | 1 requires 1 serial port via additional module |
| RFID Connectivity | 1 requires 1 serial port |
| Vehicle Scales Connectivity | 1 requires 1 serial port |
| Bucher Garbage Truck Compactor Connectivity | 1 requires 1 serial port |
| Engine Hour Meter Reading | |
| Engine Hour Meter Reading | |
| Iridium Satcoms | Optional - requires 1 serial port |
| J1939/1708 CanBus Engine Management Monitoring | Optional - requires 1 serial port |
| OBDII CanBus Engine Management Monitoring | Optional - requires 1 serial port slot |
| Mobile Data Terminal Interface | Optional - requires 1 serial port |
| Tyre Pressure Monitoring System | Optional - requires 1 serial port |
| Mass Management Vehicle Scales Interface | Optional - requires 1 serial port |
| Refrigerated Transport Temperature Monitoring Interface | Optional - requires 1 serial port |
| Bucher Garbage Interface | Optional - requires 1 serial port |
| Street Sweeper Operations Interface | |
| FloCon Operations Interface | |
| Lawn Mower Blade Down Operations Interface | |
| Grader Blade Down Operations Interface | |
| Internal Hardware Geofencing Operations Interface | |
| Configurable Events To Log & Poll Server | |
| Configurable Events To Set Output Status on Device | |
| Variable Position Updates Based on Inputs | |
| Variable Max Speed Warning Updates Based on Inputs | |
| Driver Behaviour Feedback In Cabin Coaching | |
| Seat Belt Monitoring | |
| 4WD Engaged Monitoring | |
| Speeding Within Geofence Monitoring | |
| Fringe Benefits Tax eLogbook | |
| Fringe Tax Credits Reporting | |
| Road User Charge Recording | |
| Wave & Go Pool Car Option |
IntelliTrac Elite GPS Tracking Software Features
IntelliTrac software is available as a fully responsive browser based PC web app, iOS App and Android App. Some features listed below may be subject to the appropriate Telematics options as listed above being selected & installed within vehicles.
| Number of Software Users | Unlimited |
| Software Security | Username & Password |
| Software Privileges | User, Power User, Power User Plus, Superuser, Administrator |
| Allocation of software privileges to each user | |
| Allocation of day time login privilges to each user | |
| Allocation of date time reporting & viewing privileges to each user | |
| After hours privacy mode setting | |
| Manual allocation of drivers to vehicles | |
| Automated app based allocation of drivers to vehicles | |
| Driver data tables including licencing requirements | |
| Driver incident/infringement register | |
| Vehicle make, model, year, reg, vin data register | |
| Custom vehicle data fields | |
| Vehicle Service data and alerts | |
| Fuel Card Usage reporting | |
| Live tracking multi vehicle | |
| Live tracking one vehicle per map window | |
| Single Vehicle Journey Replay | |
| Multi Vehicle Journey Replay | |
| Journey Report | |
| Stop time report | |
| Working hours report | |
| After hours usage report | |
| Activity within geofence report | |
| Excessive Idle Reporting | |
| Alert Wizard | |
| Pop Up alerts on software | |
| Email Alerts | |
| SMS alerts via 3rd party email to sms converter (Additional cost) | |
| Push notifications via 3rd party Pushover app(additional cost) | |
| Alert Configuration Manager | |
| Driver behaviour reporting | |
| Driver behaviour fleet leader board | |
| Excessive RPM Alerts | |
| OBDII/CanBusFuel Consumption Reports | |
| Estimated Fuel Consumption Reports | |
| Custom Report builder | |
| Report Email Scheduler | |
| Online Training Manual | |
| Online Training Video | |
| RPM Monitoring | |
| Customisable Dynamic Trend Analysis Dashboard | |
| Pool Car booking & Driver RFID Authentication System Wave & Go Access | |
| Transport Management System App. Manifests, Mobile App, Sign on Glass Navigation | |
| Chain of Responsibility NHVR Fatigue Management, Pre-start Check list, Mass Management App | |
| Fringe Benefits Tax eLogbook App | |
| IntelliTrac Messenger App | |
| IntelliTrac Garbage Truck Waste Management App | |
| IntelliTrac Street Sweeper Management App | |
| IntelliTrac Route Optimisation App | |
| Customised Map Geofences & Overlays |
